Vishay Intertechnology Releases Second-Generation Automotive Grade IHLE® Inductor

53758933137_089a3a8424_c

Improved Shield Design Delivers Higher Voltage Ratings, Up to 20 dB of Radiated E-Field Reduction, and Polarity Marking for Additional EMI Control

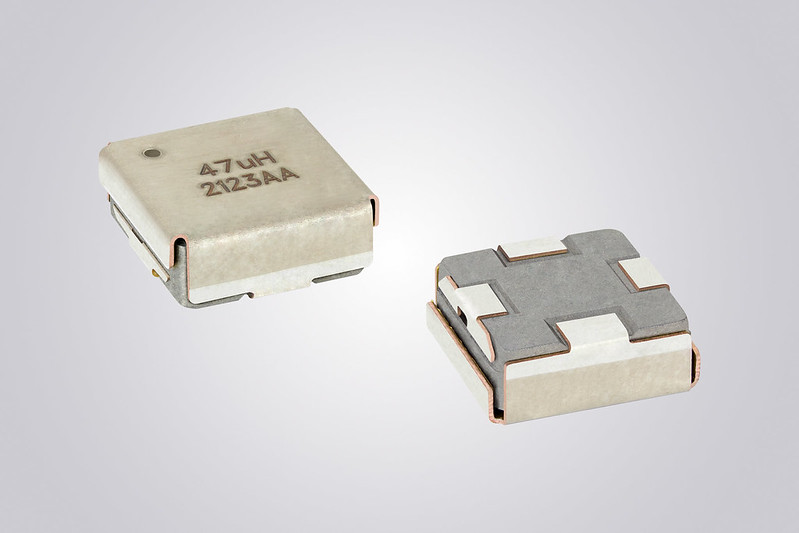

Vishay Intertechnology, Inc. (NYSE: VSH) today expanded its IHLE® series of low profile, high current inductors featuring integrated E-field shields with a new second-generation Automotive Grade device in the 10 mm by 10 mm 4040 case size. Offering an improved shield design over previous-generation solutions, and polarity marked for more consistent EMI performance, the Vishay Dale IHLE-4040DDEW-5A lowers costs and saves board space by potentially eliminating the need for separate board-level Faraday shielding.

Compared to traditional composite inductors, the device released today contains the electric and magnetic fields associated with EMI in a tin-plated copper integrated shield. When the shield is connected to ground, the IHLE-4040DDEW-5A provides up to 20 dB reduction in radiated noise interference, and a further 6 dB reduction in magnetic flux leakage to minimize crosstalk to nearby board components. The inductor features continuous high temperature operation to +155 °C and improved operating and isolation voltage ratings of 75 V and 100 V, respectively.

The IHLE-4040DDEW-5A power inductor is optimized for energy storage in switch mode power supplies and provides excellent noise attenuation when used as a DC power line choke. AEC-Q200 qualified, the device is designed for filtering and DC/DC conversion in entertainment / navigation systems; LED drivers; and noise suppression for motors, automotive domain control units (DCU), and other noise-sensitive applications.

Packaged in a 100 % lead (Pb)-free, magnetically shielded, iron alloy encapsulant, the IHLE-4040DDEW-5A offers high resistance to thermal shock, moisture, and mechanical shock from the additional mounting support provided by its two shield terminals. The inductor is RoHS-compliant, halogen-free, and Vishay Green.

Device Specification Table:



Low End

High End

Inductance @ 100 kHz (μH)

0.47

68

DCR typ. @ 25 °C (mΩ)

1.55

240

DCR max. @ 25 °C (mΩ)

1.66

252

Heat rating current typ. (A)(¹)

32

2.6

Saturation current typ. (A)(²)

28

3.5

Saturation current typ. (A)(³)

40.1

4.9

SRF typ. (MHz)

32.0

3.5

Case size

4040

4040

Part number

IHLE4040DDEWR47M5A

IHLE4040DDEW680M5A

 (¹) DC current (A) that will cause an approximate ΔT of 40 °C
(²) DC current (A) that will cause L0 to drop approximately 20 %
(³) DC current (A) that will cause L0 to drop approximately 30 %

Samples and production quantities of the IHLE-4040DDEW-5A are available now, with lead times of 16 weeks.
