Compact quad-core computer by AAEON

UPC-CHT01-A20-0432_RD

Full functionality at an affordable price.

TME’s offer could never lack the most modern embedded solutions, i.e. those integrated into a single computer board, which are characterized by small size and versatility. Today, they are commonly used in industrial automation, as an element of automation systems for buildings (switchboard in an intelligent building), public utility devices (e.g. ticket machines or dispensers), and even street advertising and artistic installations. The most rapidly developing field in which such products are used is of course the IoT (Internet of Things), where they can play the role of a miniature network gateway. One of the world’s leading suppliers of single-board computers is AAEON which belongs to the ASUS group.

In our catalogue, you will find a wide range of solutions by AAEON. One of them, noteworthy due to its capabilities, is the UPC-CHT01-A20-0432 single-board computer. The most important features of this product include:

  • Intel® Atom™ x5-Z8350 Quad Core processor clocked at 1.92GHz;
  • Intel® HD 400 integrated graphics card;
  • DDR3-L 4GB 1600MHz RAM;
  • 32GB eMMC;
  • built-in Wi-Fi b/g/n and Bluetooth 4.0 modules;
  • interfaces: HDMI, eDP, USB 3.0 OTG, USB 2.0 x2 with header connector, Ethernet;
  • 100-pin expansion docking connector;
  • passive cooling (radiator);
  • module dimensions: only 57x66mm!

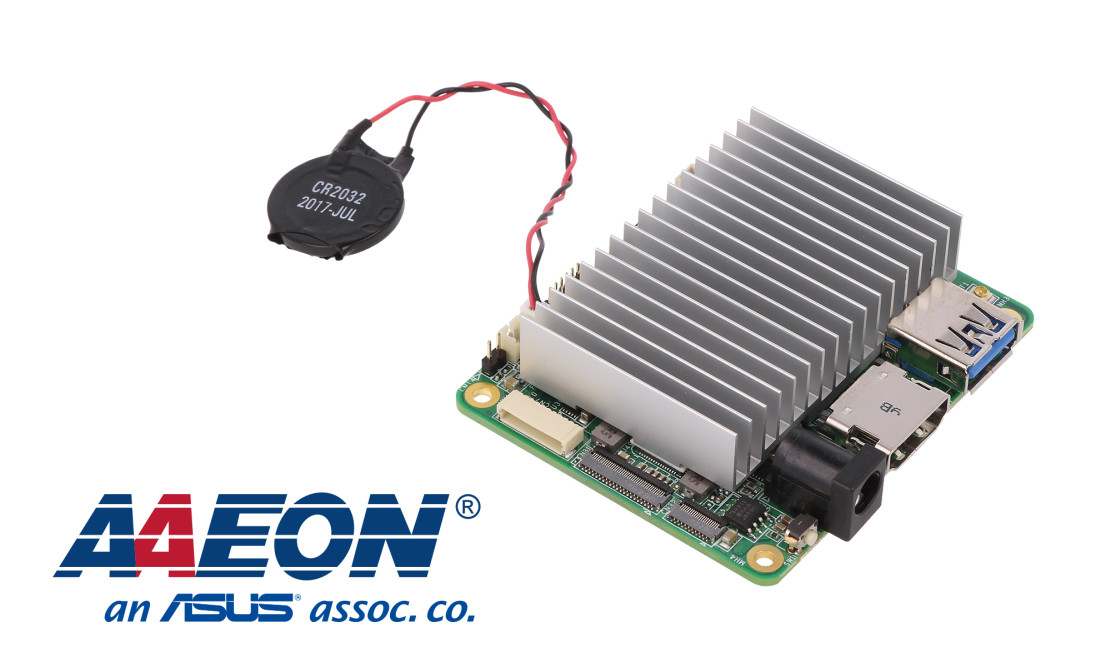

UPC-CHT01-A20-0432Single-board computer: UPC-CHT01-A20-0432.

The expansion slot, which is a part of the computer’s motherboard, allows you to easily expand the system with additional functions. AAEON offers for that purpose dedicated expansion boards. Thanks to this, in practice, the time needed for project implementation is significantly shortened. The most important areas of application of the single-board computer are Internet of Things (IoT) and industrial embedded systems (the computer is compatible with Windows 10, Linux and Android 6.0 operating systems).

Among the compatible accessories available at the TME, you will find e.g. the EP-FNUPACTCLRDC cooling module  which allows you to take full advantage of the computing power of quad-core Intel processor. Another interesting product is the TFT EP-LK007TFTPCAP display. It is equipped with a touch (capacitive) panel, which is perfect for creating intuitive user interfaces (for operating systems working in the so-called Kiosk Mode).

ep-lk007tftpcapDisplay compatible with the UPC-CHT01-A20-0432 motherboard.
