AVL and Rohde & Schwarz collaborate to automate and speed up EMC tests under real driving conditions

Focus_Article_new_16_9_w900_hX

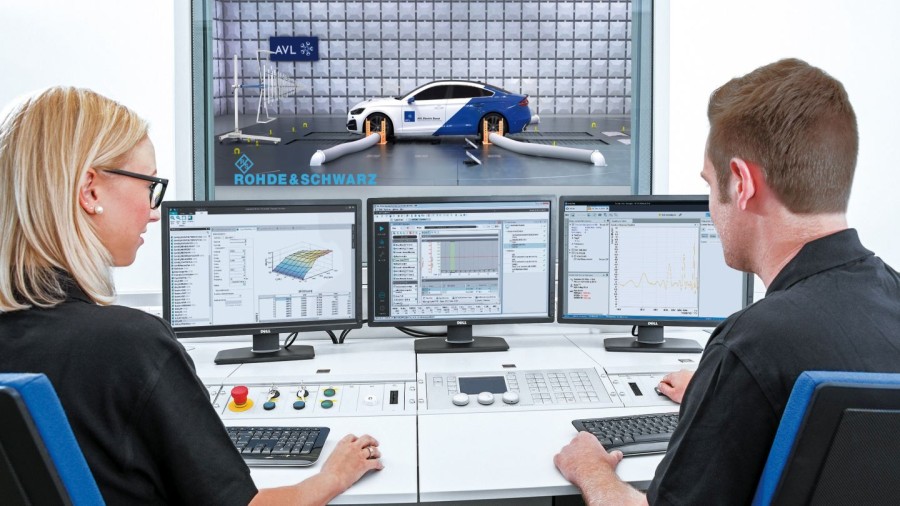

Electric vehicles contain many electronic components that emit radio-frequency interference which may have a negative impact on the vehicle performance and driving experience. To ease and speed up the development process, AVL and Rohde & Schwarz, two of the world’s leading providers of automotive test systems, present an innovative solution for automated electromagnetic compatibility (EMC) data analysis of an electric drivetrain under real driving conditions.

The electrification of vehicles leads to new EMC challenges because of higher switching frequencies of semi-conductors and higher emissions due to high voltages and currents. EMS (Electromagnetic Susceptibility) and EMI (Electromagnetic Interference) testing of components and vehicles addresses these challenges. To meet time to market requirements, test automation is key. Additionally, the tests must be as realistic as possible, so there is a trend from static EMC testing of vehicles to dynamic testing where the drivetrain is active, varying in speed as well as torque during the execution of the EMC test.

The real-time synchronization of measurement data between the EMC testbed, measurement system and automation software is key to efficient and repeatable EMC-compliant component and vehicle development. Therefore, AVL and Rohde & Schwarz have developed a solution that supports automated testing with simulation of real driving conditions while covering typical automotive standards. The AVL PUMA 2™ automation controls the test cycle and stores the measured data, in synchronization with the R&S ELEKTRA EMC test software to exchange information between the testbed and the EMC measurement equipment. The ELEKTRA software has been modified to enable automatic and seamless communication with AVL CONCERTO™ software, replacing a previously manual process. CONCERTO™ is post-processing the measured data automatically and gives a full test report according to the pre-defined pass and fail criteria.

R&S ELEKTRA controls complete EMC systems and automates measurements of equipment under test (EUT) being certified for emissions (EMI) and immunity (EMS). The software simplifies configuration of test systems and test descriptions in accordance with common standards. It speeds up test execution and paves the way to quickly generating a comprehensive test report.

“Many customers have been wanting for years to see Rohde & Schwarz EMC analyzers connected to the AVL EMC test automation system. Together, we have finally accomplished this, and are pleased to offer this new solution, improving and accelerating EMC validation of e-drives and vehicles,” states Alban Hemery, Department Manager for E-Motor Test Systems and EMC Applications at AVL List GmbH.

“As market leader in EMC instrumentation, Rohde & Schwarz has a long and productive history of collaboration with AVL to develop leading-edge test systems for the automotive industry. The enhancement of R&S ELEKTRA to be compatible with AVL’s PUMA 2 is another significant step speeding up EMC test times under real driving conditions, particularly for electric drivetrains,” adds Juergen Meyer, Vice President Market Segment Automotive at Rohde & Schwarz.
