Analog Devices CN0534 LNA Receiver Reference Design for 5.8GHz ISM Applications

PRINT_Analog Devices Inc. CN0534 5.8GHz RF LNA Receiver Reference Design

Mouser Electronics, Inc., the industry’s leading New Product Introduction (NPI) distributor with the widest selection of semiconductors and electronic components™, is now stocking the CN0534 5.8 GHz low-noise amplifier (LNA) receiver reference design from Analog Devices. The circuit provides high gain, robust overpower monitoring, and protection, all in a small footprint. This feature is an excellent addition to any 5.8 GHz ISM band application where low signal strength or distance may be a complication.

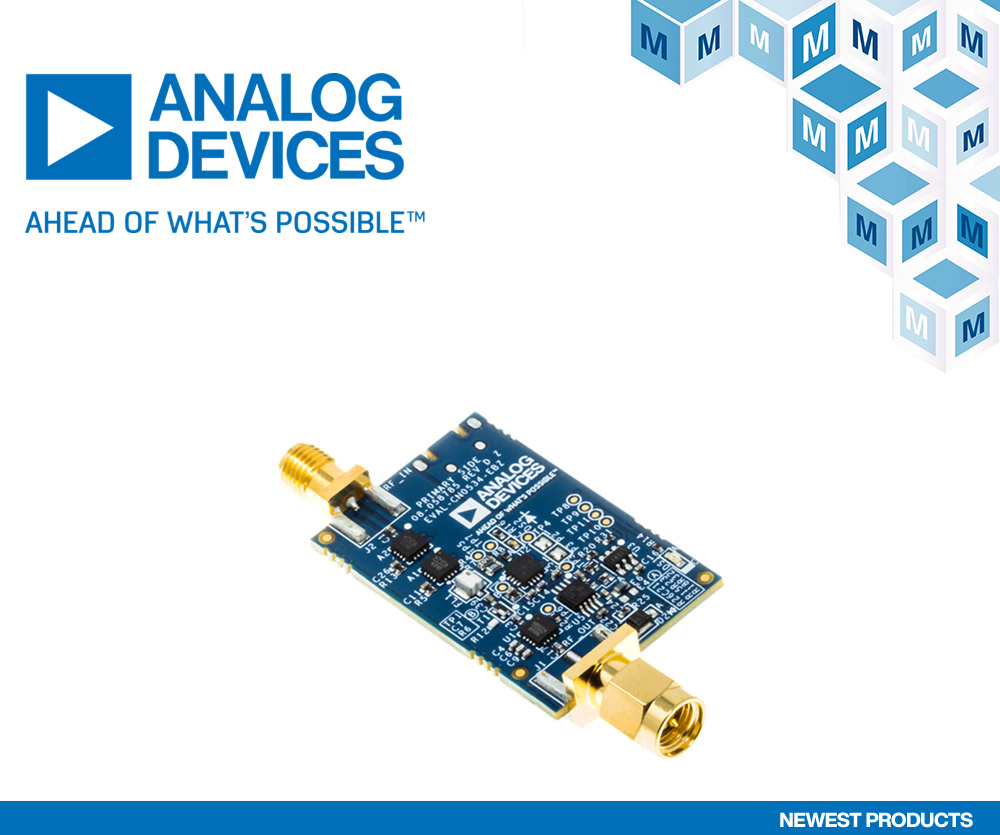

Analog Devices CN0534 LNA receiver reference design, available from Mouser Electronics, is a high-performance RF receiver system with +23 dB of gain, optimized for operation at a center frequency of 5.8 GHz. The input is unfiltered, maintaining a noise figure of 2 dB, while a bandpass filter at the output attenuates out-of-band interferers.

The CN0534 circuit includes a high-speed overpower detector and switch that protects sensitive downstream equipment connected to the receiver system. The receiver system automatically returns to regular operation when the RF power level drops within the acceptable range. The RF inputs and outputs are standard SMA connectors, and the entire design is powered from a single Micro-USB connector.

To learn more, visit

As a global authorized distributor, Mouser offers the world’s widest selection of the newest semiconductors and electronic components — in stock and ready to ship™. Mouser’s customers can expect 100% certified, genuine products that are fully traceable from each of its manufacturer partners. To help speed customers’ designs, Mouser’s website hosts an extensive library of technical resources, including a Technical Resource Center, along with product data sheets, supplier-specific reference designs, application notes, technical design information, engineering tools and other helpful information.

Engineers can stay abreast of today’s exciting product, technology and application news through Mouser’s complimentary e-newsletter. Mouser’s email news and reference subscriptions are customizable to the unique and changing project needs of customers and subscribers. No other distributor gives engineers this much customization and control over the information they receive. Learn about emerging technologies, product trends and more by signing up today at
