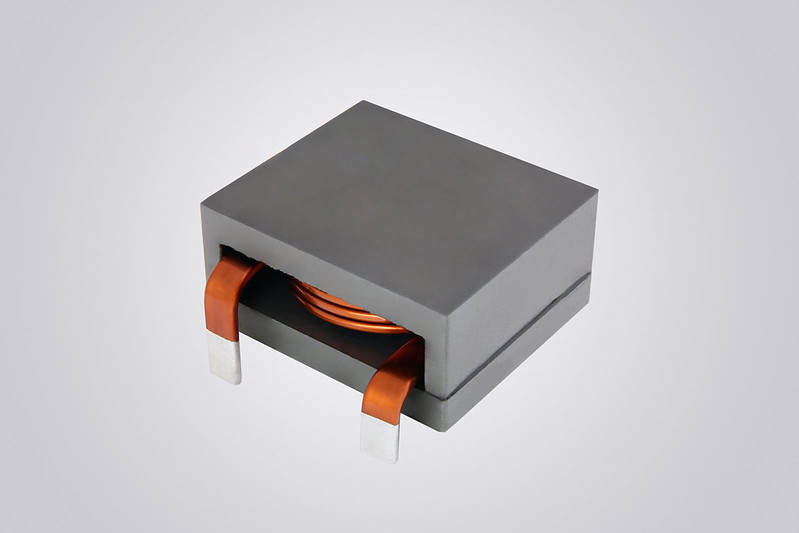

Vishay Intertechnology Automotive Grade IHDF Edge-Wound Inductor

53618551596_3d0a3040b8_c

Featuring Ferrite Core Technology, Through-Hole Device Offers High Temp. Operation to +155 °C and Low DCR to Reduce Power Losses and Increase Efficiency

Vishay Intertechnology, Inc. (NYSE: VSH) today introduced a new Automotive Grade IHDF edge-wound, through-hole inductor with rated current up to 72 A and saturation currents up to 230 A. Featuring ferrite core technology and a low 15.4 mm maximum profile, the Vishay Custom Magnetics IHDF-1300AE-1A operates over a demanding temperature range from -55 °C to +155 °C with low AC and DC power losses and excellent heat dissipation.

The edge-wound coil construction provides low DCR of 1.1 mΩ maximum, which minimizes losses and improves rated current performance for increased efficiency. Compared to competing ferrite-based solutions, the IHDF-1300AE-1A offers 75 % higher rated current. The device’s low profile package allows designers to meet the harsh mechanical shock and vibration requirements needed for AEC-Q200 qualification while minimizing board height to save space.

With an operating voltage up to 500 VDC, the AEC-Q200 qualified inductor is ideal for DC/DC converters, inverters, and motor and switching noise suppression. Target applications include high current, high temperature automotive systems, such as on-board chargers for electric (EV) and hybrid electric vehicles (HEV).

Vishay can customize the IHDF-1300AE-1A’s mounting orientation, termination type, nominal inductance, and isolation voltage rating on request. To reduce the risk of whisker growth, the inductor features a hot-dipped tin plating. The device is RoHS-compliant, halogen-free, and Vishay Green.

Device Specification Table:

Case size 1300
Profile (mm) 15.4
Inductance (µH) 1.0 to 5.0
DCR max. (mΩ) 0.79 to 1.11
Heat rating current (A) 59 to 72
Saturation current (A) 78 to 230(¹)
SRF typ. (MHz) 15 to 39

 (¹) DC current (A) that will cause L0 to drop approximately 20 %

Samples and production quantities of the new inductor are available now, with lead times of 12 weeks.
