MORNSUN launched 60W AC/DC Dual-output Enclosed Switching Power Supply for Laser Applications

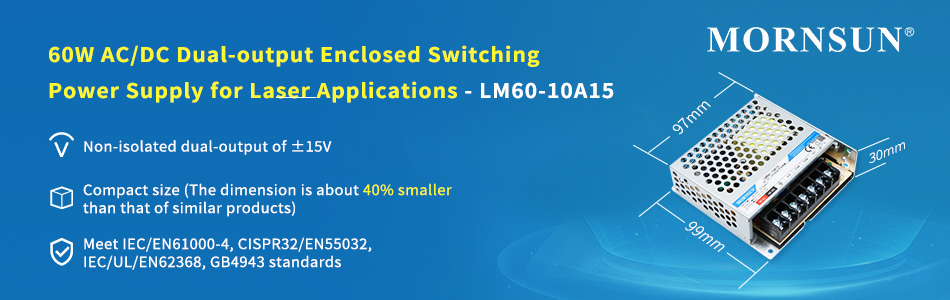

MORNSUN's LM60-10A15-1

To address the power design challenges such as size, reliability, certification, etc. in laser applications, MORNSUN launched the LM60-10A15 series with the feature of a wide input voltage range and non-isolated dual-output of ±15V.

The LM60-10A15 series accepts AC or DC input has a compact size of about 40% smaller than that of similar products and is designed to meet the EMC and safety regulations of IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards, which meet the high-reliability requirements of laser applications.

MORNSUN LMxx-12Axx series covers the power of 60W, 90W, and 150W for laser galvanometer applications, which can also be used for current sensors, motors, etc.

Advantages

  1. Compact size: the dimension is about 40% smaller than that of similar products
  2. Highly automated production (about 80% automation) with complete process control management
  3. Wide operating temperature range: -25℃ to +70℃
  4. High reliability:

a. Meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards
b. Output short circuit, over-current, over-voltage protection
c. Operating altitude up to 5000m
d. High I/O isolation voltage up to 3000VAC

Applications

The LM60-10A15 series can be widely used in laser galvanometer, current sensors, motors, etc.

MORNSUN's power supply

Features

  • Universal Input voltage: 85 – 264VAC or 120 – 370VDC
  • Operating temperature: -25℃to +70℃
  • High efficiency, high reliability, and long life
  • Output short circuit, over-current, over-voltage protection
  • High I/O isolation voltage up to 3000VAC
  • Operating altitude up to 5000m
  • Compact size layout (The volume is about 40% smaller than that of similar product

For more information, please visit www.mornsun-power.com
