How to Test Partial Discharge with PicoScopes

Untitled

Derek Hu  Pico Technology

1 About partial discharge

Partial discharge(PD) is an electrical discharge that does not completely bridge the insulation between electrodes. It can occur due to the gas filled void in solid insulation or abubble in a liquid insulator. PD often appears in a variety of parts of the power systems like switchgears, insulators, transformers, cables, etc.

PD can be classified into three main types: Internal PD, Surface PD, Corona PD. Internal(or Void)PDoccurs inside insulation and is most often caused by defects in the solid insulation of cables, bushings, GIS(Gas Insulated Switchgear) and Junction insulation. This type of discharge is highly destructive to insulation and can expand until it causes complete failure. Surface PD occurs across the surface of insulation and Corona PD is from a sharp electrode into gas.

Figure 1 below shows the cross-sectional view of a cable. The defect in the insulation between two electrodes, HV Conductor and Earth, can cause Internal PD.

Untitled

Figure 1 The defect in the solid insulation of a cable

2 Partial discharge measurement

Several methods, such as ultrasonic, electromagnetic field, high frequency current transformer (HFCT), can be used to measure partial discharge. The HFCT method involves using a high frequency current transformer and an oscilloscope to acquire the high frequency current pulse generated during partial discharge.

As figure 2 shows, some unexpected capacitors are created in a conductor if there is a void in the insulation. Consequently,a high frequency current pulse is generated along the cable due to the charging and discharging of these capacitors. These defects can be detected and analyzed by testing the high frequency current pulse.

Figure 3 shows a schematic diagram of PD detection for power equipment using HFCT method.

Untitled

Figure 2Testhigh frequency current pulse with PicoScope and current transformer

Untitled

Figure 3 Schematic diagram of PD detection for power equipment with HPCT method

A PD detector system with HFCT method generally consists of a high-frequency current sensor, a power frequency phase unit, a signal acquisition unit, and a signal processing and analysis unit.PicoScopes are popularly used as a data acquisition unit in PD detector system. Figure 4 shows the schematic diagram of a typical PD detection system.

Untitled

Figure 4 Schematic diagram of PD detection system with HPCT method

PRPD (Phase Resolved Partial Discharge) and PRPS (Phase Resolved Pulse Sequence)are two typical graphs to be measured by PD testing or detection system.

PRPDgraph shows the PD activity relative to the 360 degrees of an AC cycle. As the primary voltage on a power system rises and falls over time, the voltage applied across each defect also rises and falls over time, causing the defect to discharge only at certain times and amplitudes. This creates the PRPD graph. Figure 5 shows a PRPD graph of PD. Different colors represent the number of PD events occurred in certain phase angle and amplitude.The horizontal x-axis is the phase angle of the power system under test and the vertical y-axis is the amplitude of PD pulses.

Untitled

Figure 5 PRPD graph of PD

PRPS is a 3D graph. The X-axis represents the power frequency cycle from 0 to 50, the Y-axis represents the phase from 0to 360 degrees, and the Z-axis represents the discharge amplitude.

Untitled

Figure 6 PRPSgraph of PD

3 Why PicoScopes?

Untitled

Figure 7 Successful PicoScope series for partial discharge testing

Untitled

Figure 8 PD testing systems

Marposs chose PicoScope for their embedded DAQ solution

Marposs Partial Discharge Tester (PDT) is effective in identifying hidden insulation issues that traditional methods miss.

They use the capacitor coupling method to provide high sensitivity and reliability in noisy production environments, ensuring long-term motor reliability and quality improvements.

Pico 4000 series are integrated into this tester which enhance the accuracy and effectiveness of Marposs’s diagnostic methods. This collaboration ensures that the identification of insulation defects is both thorough and reliable.



PicoScope models like PicoScope3000D, PicoScope 5000D, PicoScope 4824A, PS 4444, PicoScope 6000D/E are popularly used in PD testing or detection systems for different kinds of partial discharge.

Figure 8 shows two PD testing systems with PicoScope built-in. The customer develops their own application software in programming languages such as LabVIEW and Python based on Pico SDK.

The main reasons for integrating PicoScopes into their PD testing systems are the unique advantages and powerful capabilities of PicoScopes.

  • High reliability

Established in 1991, Pico Technology has been focusing on the development and manufacture of PC-based test instrument and data acquisition equipment. Decades of product iteration and stringent quality controls make PicoScopes highly reliable.

  • Cost-efficiency

Unlike benchtop instruments,PicoScopes do not have a PC in the box, which gives them more unique hardware advantages due to their simple structure.This Includes high bandwidth/sampling rate, deep memory, high/flexible ADC resolution, multiple analog and digital inputs, fast speed, etc. Utilizing the full capability of an external PC allows PicoScopes more software capabilities, including 30+ serial decoders, advanced math functions (FFT, filters, measurements plotting, etc). Additionally, the wide rangePicoScope models makes it easier for customers to find one that is affordable and suitable for their applications.

  • High/Flexible ADC resolution

PicoScopes offer a wide range of vertical resolution options from 8 to 16 bits. Higher resolution provides greater vertical accuracy and the dynamic range. Pico’s breakthrough ADC technology allows users to switch from 8 to 16 bits in one unit.

  • Fast and powerful SDK

PicoScopes provide a level of interconnectivity and customization that is usually unavailable on most benchtop oscilloscopes. The SDK (Software Development Kit) allows users to create custom applications for their particular projects, making PicoScopes more than just regular oscilloscopes. Under the SDK, PicoScopes perform better such as acquiring and transmitting data continuously to PC at speeds up to 312 MS/s; The memory can be segmented up to 2 million; users can set the advanced triggers and generate waveforms programmatically. Programming with SDK is simple and easy. Our professional technical support team is always ready and lots of code examples can be found in github.com/picotech.

All Pico products, including PicoScopes come with a free-of-charge SDK. The SDK includes drivers for Windows, macOS, Linux and Raspberry Pi (ARM7). It allows users to write their own software to control the instruments with popular languages such as C, C#, C++, Python, MATLAB, LabVIEW and Microsoft Excel.

  • Compact and portable units

Unlike traditional benchtop instruments, PicoScopes are compact, light and portable. When used with a laptop computer, a PicoScope allows you to carry a complete electronics toolset in one bag with your PC. And small size also makes PicoScopes easier to be integrated into the systems with almost no increase in weight or size.

Untitled

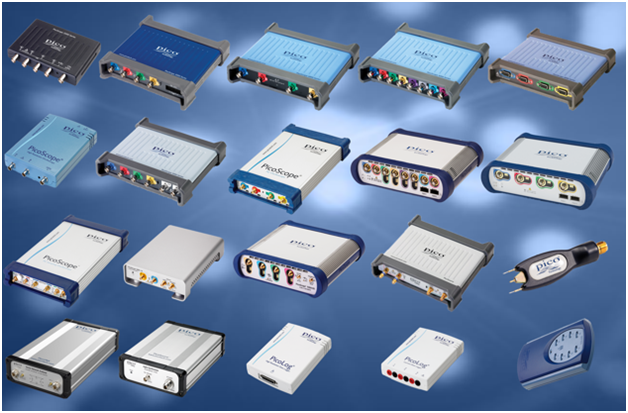

Figure 9 Pico products family
